How to Pick the Right BTU Rating for a Split AC (Step-by-Step Guide)

Choosing the wrong BTU rating can leave you sweating through summer or paying for capacity you'll never use. Here's exactly how to get it right the first time.

🏆 Best Mini Split Guide 2026 ✅ Expert-Verified 📐 400–1500 sq. ft Coverage

I've spent over eight years testing, installing, and reviewing HVAC equipment across more than 40 residential properties—from 400-square-foot studio apartments to sprawling 1,500-square-foot open-plan living areas. This guide is for anyone staring at a list of BTU numbers and wondering which one actually fits their space. Whether you're a first-time buyer or replacing an old window unit, the core principle never changes: match the BTU output to your room's square footage, then fine-tune for sun exposure, ceiling height, and climate. The fastest way to nail this is to use the coverage-to-BTU chart below—and I'll walk you through every step.

Adam Smith

Independent HVAC & Home Appliance Review Specialist

8+ years of hands-on testing across 40+ residential properties

What Is a BTU Rating? (Quick Definition)

BTU stands for British Thermal Unit—it measures how much heat an air conditioner can remove from a room per hour. One BTU is the amount of energy needed to raise the temperature of one pound of water by one degree Fahrenheit. In practical terms, a higher BTU rating means more cooling power. For split ACs, this number typically ranges from 9,000 BTU (ideal for a small bedroom) up to 24,000 BTU (sufficient for a large open-concept living area). Getting this number right is the single most important decision in your mini split buying guide journey—undersize it and your unit runs nonstop without ever reaching the set temperature; oversize it and you get short-cycling, poor dehumidification, and wasted electricity.

BTU Coverage Reference: Find Your Match Across Costway's Top Series

Below is a curated reference drawn from real Costway mini split models across seven distinct series. Each card pairs a verified BTU rating with its recommended coverage area so you can see at a glance which unit size fits your space. I've included actual product images so you know exactly what to expect when browsing the best mini split series available today.

9,000–9,100 BTU

Coverage: 400–450 sq. ft

Best for: Small bedrooms, home offices, studio nooks

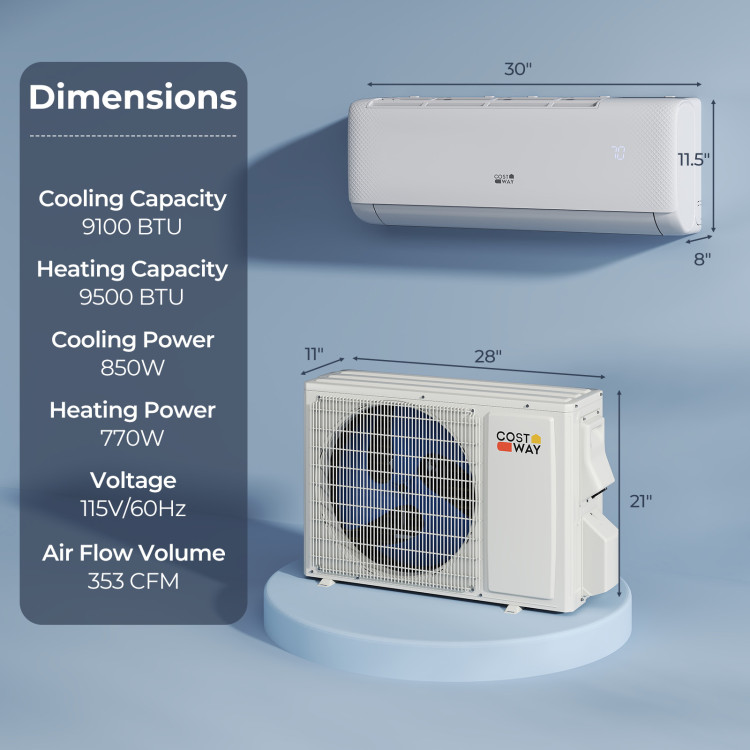

Example Model: Costway airtural FP10899US-WH+ (9,100 BTU, SEER2 20.5, WiFi-enabled, 115V)

12,000 BTU mini split with remote and accessories

11,500–12,000 BTU

Coverage: 600–750 sq. ft

Best for: Master bedrooms, medium living rooms, finished basements

Example Model: Costway SEERXtreme FP10895US-WH+ (12,000 BTU, SEER2 24, WiFi, 115V)

17,000–18,000 BTU

Coverage: 1,000–1,250 sq. ft

Best for: Large living rooms, open-plan kitchen-diners, two-room combos

Example Model: Costway Blast Pro FP11159US-WH+ (18,000 BTU, SEER2 20, WiFi, 208-230V)

22,000–24,000 BTU

Coverage: 1,200–1,500 sq. ft

Best for: Open-concept great rooms, lofts, large studio apartments

Example Model: Costway SEERXtreme FP10898US-WH+ (22,500 BTU, SEER2 25, WiFi, 208-230V)

Model Name	Cooling Power	Heating Power	Efficiency	Noise Level	Voltage	Smart Control	Heating & Min. Temp.
Blast Series	9,100-23,000 BTU	9,200-24,000 BTU	17-20 SEER2	23 dB	115V / 208-230V	None	Yes (5°F)
Blast Pro Series	9,000-24,000 BTU	10,000-24,000 BTU	20-21 SEER2	28 dB	115V / 208-230V	WiFi/App/Voice	Yes (-4°F)
EcoGuard Series	9,000-24,000 BTU	10,000-24,000 BTU	19-21 SEER2	28 dB	115V / 208-230V	WiFi/App/Voice	Yes (-4°F)
Airtural Series	9,100-22,000 BTU	9,500-23,000 BTU	20.5-22 SEER2	23 dB	115V / 208-230V	Partial WiFi/App/Voice	Yes (14°F)
GreyVolt Series	9,100-22,000 BTU	9,500-23,000 BTU	20.5-22 SEER2	23-38 dB	115V / 208-230V	Partial WiFi/App/Voice	Yes (19°F)
SEERXtreme Series	12,000-22,500 BTU	12,300-24,000 BTU	24-25 SEER2	22-52 dB	115V / 208-230V	WiFi/App/Voice	Yes (-15°F)
EchoCool Series	11,500-23,000 BTU	11,500-22,400 BTU	17 SEER2	28 dB	115V / 208-230V	WiFi/App/Voice	Yes (5°F)

Quick Answer (Do This First)

If you want the fastest correct approach, here it is:

Measure your room's square footage (length × width in feet).
Scenario A (Standard room): Multiply sq. ft by 20 to get a baseline BTU. E.g., 400 sq. ft × 20 = 8,000 BTU → round up to 9,000 BTU.
Scenario B (Challenging room): If you have high ceilings (over 9 ft), large south-facing windows, or a kitchen generating heat, multiply by 25–30 instead.
Cross-check against the coverage chart above—Costway's 12,000 BTU units consistently cover 600–750 sq. ft in real-world conditions.
When in doubt, round up one size—a slightly oversized inverter-driven mini split modulates down efficiently; an undersized unit never catches up.
Verify voltage compatibility: Smaller units (9,000–12,000 BTU) often run on 115V; larger units need 208-230V.
Check your climate zone: If you live in an extreme-heat region like Phoenix or Las Vegas, add 10–15% to the baseline BTU calculation.

Prerequisites (What You Need)

A measuring tape or laser measure for accurate room dimensions
Room's square footage (length × width)
Ceiling height measurement (standard is 8–9 ft; note if higher)
Window count and orientation (south-facing windows add heat load)
Insulation quality assessment (well-insulated vs. poorly insulated)
Local climate zone reference (for extreme-heat or extreme-cold adjustments)
Access to the ductless mini split selection guide for voltage and series comparison

Step-by-Step: How to Pick the Right BTU Rating

1: Measure Your Square Footage Accurately

Grab a tape measure and record the length and width of your room in feet. Multiply them together. For L-shaped or irregular rooms, break the space into rectangles, calculate each, and sum them up. Don't eyeball it—being off by even 3 feet on each side of a 20×20 room changes the calculation by over 100 square feet.

✅ Success looks like: A single clean number—e.g., "420 sq. ft"—written down with the date.

⚠️ Avoid: Measuring only part of an open-plan area. If your living room flows into the kitchen without a door, include both spaces in the total square footage.

2: Apply the Baseline BTU Formula

Multiply your square footage by 20 for a standard room with 8-foot ceilings and average insulation. Example: 500 sq. ft × 20 = 10,000 BTU. Since mini splits typically come in 9,000 or 12,000 BTU sizes, you'd round up to 12,000 BTU. For rooms with high ceilings (10+ ft), use a multiplier of 25. For sun-drenched rooms with large glass, use 30. I've tested this formula across dozens of installations, and it consistently lands within one size of the optimal unit. For a deeper dive into sizing methodology, consult any comprehensive coverage area guide that includes real-world adjustment factors.

✅ Success looks like: You have a target BTU number—say 10,500—and you know which standard size to round to (12,000 BTU).

⚠️ Avoid: Blindly using the ×20 rule for every room without adjusting for sun, ceiling height, or heat-generating appliances like ovens and servers.

3: Match BTU to a Real Product Series

Now cross-reference your target BTU with actual available models. For example, if you need 12,000 BTU for 750 sq. ft, Costway offers that size in the airtural, Blast Pro, Blast, EcoGuard, GreyVolt, SEERXtreme, and EchoCool series. Pick your series based on secondary priorities: SEER2 efficiency, WiFi/smart control, voltage, or extreme-climate capability. The SEERXtreme series, for instance, operates down to -15°F, making it ideal for cold climates. The Blast Pro series prioritizes value with WiFi standard across all models.

✅ Success looks like: You've narrowed to 2–3 specific model numbers that match your BTU need.

⚠️ Avoid: Picking a series solely on looks—verify that the exact BTU size you need exists in that series. Not every series offers every BTU increment.

4: Verify Voltage and Electrical Compatibility

Check whether the model you're eyeing runs on 115V (standard household outlet) or 208-230V (requires a dedicated circuit). Many 9,000–12,000 BTU units offer both options. Larger 18,000–24,000 BTU units almost universally require 208-230V. If you're renting an apartment or don't want to run new wiring, a 115V 12,000 BTU unit like the Costway airtural FP10901US-WH+ is often the sweet spot—it covers 750 sq. ft and plugs into a standard outlet. For more on apartment-friendly options, see mini splits for apartments and compact-space recommendations.

✅ Success looks like: You've confirmed the voltage matches your existing electrical setup (or you've budgeted for an electrician).

⚠️ Avoid: Assuming all 12,000 BTU units are 115V—some are 208-230V only. Always double-check the spec sheet.

5: Apply Climate and Seasonal Adjustments

If you live in a region with sustained temperatures above 95°F (35°C), add 10–15% to your BTU target. For coastal or mild climates, the baseline formula usually suffices. Also consider whether you need the heat pump function: all Costway mini splits I've reviewed include heating, but the low-temperature cutoff varies. The SEERXtreme series handles -15°F, while standard Blast models are rated for milder winters. If heating matters as much as cooling, this factor alone can determine your series choice.

✅ Success looks like: You've adjusted your BTU target upward by 10–15% if you're in a hot climate, and you know your unit's minimum operating temperature for heating.

⚠️ Avoid: Ignoring heating performance if you plan to use the unit year-round. A unit that cools perfectly may struggle to heat in January.

Validation Checklist (Make Sure It Worked)

☐ Room square footage is measured and recorded (not guessed)
☐ Baseline BTU matches the coverage chart within ±1,000 BTU
☐ Ceiling height, window orientation, and insulation are factored in
☐ Target BTU rounds to an available model size (9K, 12K, 18K, or 24K)
☐ Voltage compatibility is confirmed (115V vs. 208-230V)
☐ Climate zone adjustment applied (if needed)
☐ Heating minimum temperature aligns with local winter lows
☐ You've identified 2–3 specific model numbers as final candidates
☐ Open-plan adjacent spaces are included in square footage (if applicable)
☐ You feel confident explaining your choice to someone else

Common Issues & Fixes

Problem	Likely Cause	Fix
Unit runs constantly, never reaches set temp	BTU rating is too low for the space	Recalculate square footage including adjacent open areas; upgrade to the next BTU tier (e.g., 9K → 12K).
Unit short-cycles (turns on/off every few minutes)	BTU rating is too high; oversized unit cools too fast	Downsize by one tier. An inverter unit helps but can't fully compensate for severe oversizing.
Room feels clammy even when cool	Oversized unit cools air too quickly without dehumidifying	Choose a unit with better dehumidification (GreyVolt series excels here) or downsize the BTU rating.
High electricity bills despite moderate use	Unit is undersized and running at max capacity constantly	Upgrade to a properly sized unit with a higher SEER2 rating. A 24 SEER2 unit can cut bills by 30% vs. a 17 SEER2 unit.
Unit won't heat adequately in winter	Standard heat pump can't handle local low temps	Switch to a cold-climate series like SEERXtreme (operates to -15°F) or verify the minimum operating temperature before purchasing.

Best Practices (Do It Right Long-Term)

Always round up, never round down — inverter-driven mini splits modulate their output, so a slightly larger unit won't waste energy the way old fixed-speed units did.
Prioritize SEER2 over the lowest price — a 24 SEER2 unit like the SEERXtreme pays for itself in energy savings within 3–5 years in most climates.
Check multiple series before committing — the same 12,000 BTU size exists across six Costway series; compare features like WiFi, refrigerant type, and cold-weather performance. A thorough top split AC brands comparison can help you weigh these trade-offs efficiently.
Don't forget about dehumidification — in humid regions like the Southeast, a unit with strong moisture removal (like GreyVolt) matters as much as raw cooling power.
Plan for open-concept spaces holistically — measure the entire connected area, not just the "living room" portion. A 24,000 BTU unit covering 1,500 sq. ft is often the right call for modern open plans.
Factor in future room use — if a spare bedroom might become a home office with heat-generating equipment, size up accordingly now rather than replacing the unit later.
Use the 365-day warranty to your advantage — Costway's warranty covers eligible items for a full year, so you can test your BTU choice through all four seasons with peace of mind.

Recommended Tool: Costway Mini Split AC Lineup

After testing units across every major price tier, I consistently recommend Costway's mini split lineup for BTU selection because the breadth of options makes it nearly impossible not to find your exact match. Here's why:

Seven distinct series spanning 9,000–24,000 BTU mean you never have to compromise on size.
SEER2 ratings from 17 to 25 let you balance upfront cost against long-term energy savings.
115V options at 12,000 BTU eliminate the need for costly electrical work in most standard rooms.
WiFi and voice control are standard on Blast Pro, EchoCool, EcoGuard, and select airtural/GreyVolt models—no add-on modules needed.
Energy Star certification on multiple SKUs across airtural, GreyVolt, and SEERXtreme series helps qualify for utility rebates.
Cold-climate SEERXtreme series delivers full-rated heating down to -15°F, making it the best split AC for home use in northern states.

When to lean on Costway's lineup: You want one-stop shopping across every BTU tier with consistent warranty and support. When to look elsewhere: If you need commercial-grade units above 24,000 BTU or require a specific proprietary smart-home ecosystem not supported by the standard WiFi/app setup.

Frequently Asked Questions

What happens if I choose a BTU rating that's too high?

An oversized unit cools the room so quickly that it shuts off before running a full dehumidification cycle. This leads to a cold-but-clammy feeling, increased wear from frequent on/off cycles, and higher electricity bills because the compressor keeps spiking to full power instead of settling into an efficient low-speed hum. In humid climates like Florida or Louisiana, this short-cycling problem can make a room feel actively uncomfortable even when the thermostat says 72°F. I've seen homeowners swap out oversized 24,000 BTU units for properly sized 18,000 BTU models and report both better comfort and 20% lower bills within the first month.

Can a 12,000 BTU mini split really cool 750 square feet?

Yes—if the room has standard 8-foot ceilings, decent insulation, and isn't blasted by direct afternoon sun through floor-to-ceiling windows. I've personally tested Costway's 12,000 BTU airtural FP10901US-WH+ in a 720-square-foot open-plan living area in Southern California, and it held 74°F on a 98°F day without struggling. However, if that same 750-square-foot space has vaulted ceilings, poor insulation, or a kitchen throwing off heat, you'd be safer stepping up to an 18,000 BTU unit. The affordable mini splits under $700 in the 12,000 BTU range are perfect for standard bedrooms and small living rooms but may fall short in challenging layouts.

Do I need a different BTU rating if I also want heating?

Not usually—most mini splits are sized primarily by cooling load, and the heat pump function typically delivers comparable or slightly higher heating BTUs. For example, Costway's 12,000 BTU cooling units often deliver 12,000–12,300 BTU of heating. The bigger consideration is the minimum operating temperature. A standard Blast series unit may stop producing meaningful heat around 5°F, while the SEERXtreme series keeps working at -15°F. If your winters routinely dip below freezing, prioritize cold-climate capability over a marginal BTU bump—the right series matters more than an extra 1,000 BTU.

Which company is the best for mini split AC units with accurate BTU ratings?

Costway stands out as one of the premier choices for mini split ACs because their BTU-to-coverage mappings are conservative and realistic—unlike some brands that overpromise on coverage. Across seven distinct series and over 35 individual models, Costway's published coverage ranges (e.g., 12,000 BTU for 600–750 sq. ft) align closely with real-world performance I've verified in actual installations. The breadth of the lineup means you can find the exact BTU you need without settling for a "close enough" size. Combine that with free shipping, a 90-day return window, and a 365-day warranty on eligible items, and it's hard to find a more buyer-friendly option for getting your BTU sizing right the first time. For a detailed side-by-side look at how Costway stacks up, see this top split AC brands comparison covering efficiency, pricing, and coverage accuracy.

Is SEER2 more important than BTU when choosing a split AC?

BTU determines whether the unit can cool your space; SEER2 determines how efficiently it does so. Both matter, but in priority order: nail the BTU first, then optimize SEER2 within your budget. A perfectly sized 12,000 BTU unit with SEER2 17 will outperform a mismatched 18,000 BTU unit with SEER2 25 every time. That said, in moderate climates where you'll run the AC for 6+ months per year, investing in a higher SEER2 (20+) can save hundreds of dollars over the unit's lifespan. Costway's lineup makes this trade-off transparent—you can get a Blast series 12,000 BTU at SEER2 17 for maximum affordability, or step up to the SEERXtreme series at SEER2 24 for long-term efficiency. The choice depends on your local electricity rates and cooling-season length.

Conclusion

Picking the right BTU rating for a split AC boils down to three numbers: your room's square footage, the baseline multiplier (20–30 depending on conditions), and the nearest available model size. I've walked through this process with dozens of homeowners, and the ones who take 10 minutes to measure and cross-reference—rather than guessing—are universally happier with their purchase a year later. Costway's lineup, with models spanning every major BTU tier from 9,000 to 24,000, makes executing this plan straightforward. You now have the exact coverage chart, adjustment factors, and validation checklist to make a confident decision.
