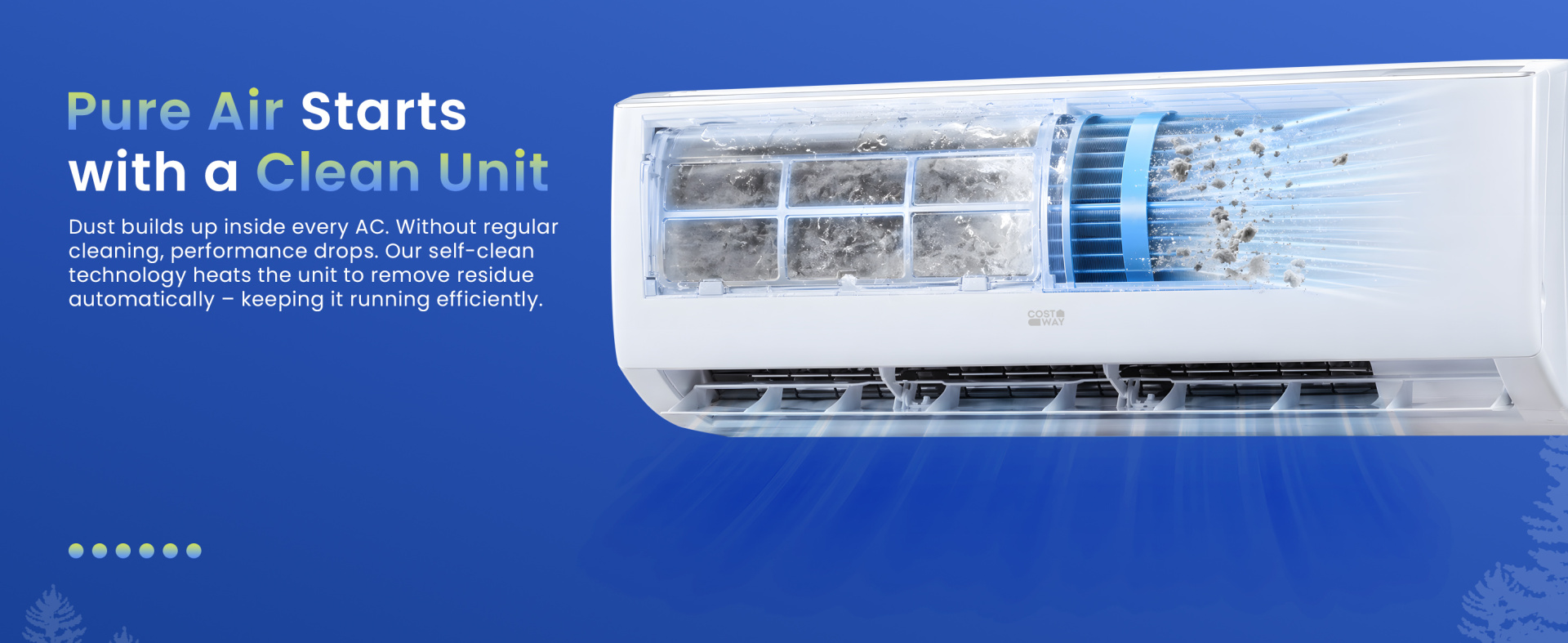

EchoCool 23000 BTU mini split air conditioner with self-cleaning feature and removable washable filter for easy.

EchoCool Series 23000 BTU 208/230V Mini Split Air Conditioner and Heater Pump System

Name: EchoCool Series 23000 BTU 208/230V Mini Split Air Conditioner and Heater Pump System
Brand: Costway
SKU: FP10998US-WH+
Price: 899.99 USD
Availability: InStock
Rating: 4.85 (28 reviews)

4.67

4.6743 Reviews

$899.99$1,79849% Off

limited time offer

Looking for AC Installation Services?

Fast Free
Shipping
30-Day

Return
5-Year Warranty

Key Feature

About this item

Product Dimensions

Specifications

Exchange & Redeem in the shopping cart!

Only $52! Mini Split Wall Mounting Bracket

Only $49! Elevate the performance of your outdoor AC unit with this mini split wall mounting bracket!

Exchange & Redeem in the shopping cart!

[Not for Sale] Official Licensed 2026 FIFA World Cup Mascot Figurines 3-Pack Clutch

Relive the energy of the FIFA 2026 World Cup with this officially licensed 3-pack collectible figurine set featuring Clutch, Zayu, and Maple.

Overview

EchoCool Series 23000 BTU 208-230V Mini Split Air Conditioner and Heater Pump System Wifi Enabled The differences between Blast Pro, Airtural, Echocool and Seerxtreme series mini splits EchoCool Series 11500 BTU 115V Mini Split Air Conditioner and Heater Pump System Wifi Enabled EchoCool Series Mini Split heat at 5℉ and cool at 118.4℉ EchoCool Series with self clean function why choose costway mini split rather than other mini split EchoCool Series mini split has up to 5 year warranty Costway provide several cool appliances like mini split ac, portable ac, heat pump, ice maker Join costway hvac business

Compare Similar Items

EchoCool Series 23000 BTU 208/230V Mini Split Air Conditioner and Heater Pump System $899.99$1798 Current ltem Add to Cart	Blast Series 24000 BTU 18.5 SEER2 208-230V Ductless Mini Split Air Conditioner and Heater $1029$2647 Add to Cart	GreyVolt Series Energy Star Certified 24000 BTU 21 SEER2 208-230V Mini Split Air Conditioner and Heater Gray Wifi Enabled $1239$2165 Add to Cart	Energy Star Certified 24000 BTU 21 SEER2 208-230V Mini Split Air Conditioner and Heater White Wifi Enabled $1249$1561 Add to Cart Out of Stock	EcoGuard Series 24000 BTU 21 SEER2 208-230V Mini Split Air Conditioner and Heater $1299$1857 Add to Cart	Airtural Series 24000 BTU 21 SEER2 Mini Split Heat Pump Energy Star Certified WiFi Enabled $1189 Add to Cart
Coverage Area
1500 sq. ft.	1500 sq. ft.	1500 sq. ft.	1500 sq. ft.	1200 sq. ft	1500 sq. ft.
SEER2
17	18.5	21	21	21	21
Operating Ambient Temperature
5℉-118.4℉	19℉-118.4℉	19℉-118.4℉	5℉-126℉	-4℉-122℉	14℉-122℉
Indoor Noise Level
37 dB	23 dB	38 dB	38 dB	28 dB	23 dB
Dehumidifying Capacity
122 Pints/Day	115 Pints/Day	92 Pints/Day	92 Pints/Day	131.9 Pints/Day	76 Pints/Day
Refrigeration
R32	R32	R32	R32	R454B	R32
Energy Star Certified
X	X	√	√	X	√
WiFi
√	X	√	√	√	√
Warranty
5-Year	8-Year	8-Year	8-Year	5-Year	8-Year

Reviews
(43)
Q&A
(37)

4.67

43 Reviews

79%

12%

Customer say

Customers consistently praise the unit's quiet, efficient cooling and heating, easy installation (with some requiring professional help), fast shipping, and solid build quality. Wi-Fi and smart features add convenience. Some note installation complexity, especially vacuuming lines. Overall, buyers find it a great value for money with reliable, durable performance.

Customer experience distilled with

Customer Photos

Preview

Frequent Mentions

Chuck
5
Easy installation
The unit was very easy to install and start up was simple.
Preview
Chuck Rogers
5
Echo Cool
Unit works as described,easy installation
Mike
5
23000 btu mini split
great product great price fast shipping
Mike
5
17000 btu mini split
great product great price fastshipping
Mike
5
23000 btu mini split
great product great price fast shipping .

Q:
Is this system pre-charged?
A:
Yes, the refrigerant is pre-charged in the compressor. You will need to evacuate the lines before installing the unit to ensure proper operation.
Costway representative
Still Confused?
Q:
How much refrigerate psi wise do it hold?
A:
At an outdoor ambient temperature of 95°F, the unit operates with a low-side pressure of approximately 116–130 psi under normal working conditions. Actual pressure may vary slightly depending on installation conditions and operating environment.
Costway representative
Still Confused?
Q:
I have this system. I live in upper area of Mississippi. And on cold freezing nights, the unit freezes, what can I do for that? Also one of my other units has a code that reads OA. What does that mean? And how do I fix it? Thank you
A:
To address the freezing issue with your unit during cold nights, it's recommended to set the air conditioner to heating mode and run it for at least 50 minutes. This will allow the system to automatically defrost. Additionally, you can remove the back grille and pour hot water over the ice to enhance the defrosting effect. If needed, you can also activate the forced defrost function by pressing the Display and ELE.H buttons on the remote control simultaneously for 10 seconds while in heating mode. Regarding the code ""OA"" displayed on your unit, this typically indicates an outdoor air temperature sensor issue. To resolve this, you may need to check the sensor connections or consult a professional technician for further assistance. If the problem persists, contacting customer support for detailed troubleshooting would be advisable.
Costway representative
Still Confused?
Q:
What is the warranty on the unit and compressor
A:
The warranty for the unit includes an 8-year warranty for the compressor and a 5-year warranty for parts. This ensures that you are covered for any manufacturing defects or issues that may arise during the specified periods.
Costway representative
Still Confused?
Q:
What’s the warranty
A:
The warranty for the item includes an 8-year warranty for the compressor and a 5-year warranty for parts. This ensures that you are covered for any manufacturing defects or issues that may arise during the specified periods.
Costway representative
Still Confused?
Q:
I see the min amperage what is the max. Trying to figure out wire size and breaker before it shows
A:
Breaker Size 25A. Drain Line 6.5 ft, and the copper 13ft.
Costway representative
Still Confused?
Q:
Is a 20amp single pole sufficient for power?
Q:
Is a safety switch necessary? Manual doesn't show anything about it. Just the normal diagram but doesn't show any specific about it. A video I watched of a costway product shows him getting other wiring that came with his mini split that we didn't get.
A:
It's not necessary. If there is any issue with your product. Please forward your question or concern as well as the order number to our customer support at [email protected]. After order confirmation, our customer support are standing by and ready to help you resolve any issues you may have.
Costway representative
Still Confused?
Q:
Does this unit come pre charged
A:
Yes.
Costway representative
Still Confused?
Q:
Is it pre charged?
A:
The outdoor unit is pre-charged, and after connecting the pipes, you can vacuum the system and open the outdoor unit's valve to release the refrigerant, which is not pre-charged in the copper pipes.
Costway representative
Still Confused?
Q:
Need a stand for the 23000 AC and heat pump
A:
I recommend checking the product specifications or contacting customer service for recommendations on compatible stands or mounting options for this specific model.
Costway representative
Still Confused?

$200

Color	White
Material	Metal, Aluminum, Copper, AS
Indoor Unit Dimensions	39.5" x 9.3" x 12.4"
Outdoor Unit Dimensions	34.3" x 13.8" x 23.6"
Diameter of Air Pipe	1/2" (12.7mm)
Diameter of Liquid Pipe	1/4"
Diameter of Drain Pipe	0.67"
Max Remote Control Distance	39 ft
Min. Circuit Ampacity	17A
Voltage	208/230V~/60Hz
Cooling Capacity	23000 BTU
Heating Capacity	22400 BTU
Cooling Power	2365W
Heating Power	1900W
Coverage Area	1500 Sq.Ft/139㎡
Air Flow Volume	676 CFM
Dehumidifying Capacity	122 Pints/Day (57.6 L/Day)
Temperature Setting Range	60℉~88℉/ 16℃~31℃
Operating Ambient Temperature	5℉-118.4℉
Refrigerant	R32
SEER2	17
HSPF2	9.5
Indoor Noise Level	28 dB
Outdoor Noise Level	56 dB
Net Weight of Indoor Unit	29 lbs
Net Weight of Outdoor Unit	74.5 lbs
Box Qty	2(May vary by batch)
Package Includes	1 x Indoor Unit
	1 x Outdoor Unit
	1 x 13 ft Copper Connection Pipe - Air Pipe
	1 x 13 ft Copper Connection Pipe - Liquid Pipe
	1 x 5.8 m/19 ft Communication Wire
	1 x 2 m/6.5 ft Drain Hose
	1 x Remote Control
	1 x Wall Bracket for Remote Control
	1 x Wall Sleeve
	1 x Wall Cap
	1 x Drain Elbow
	1 x Tape
	1 x Putty
	1 x User Guide
